Folding Sliding Doors

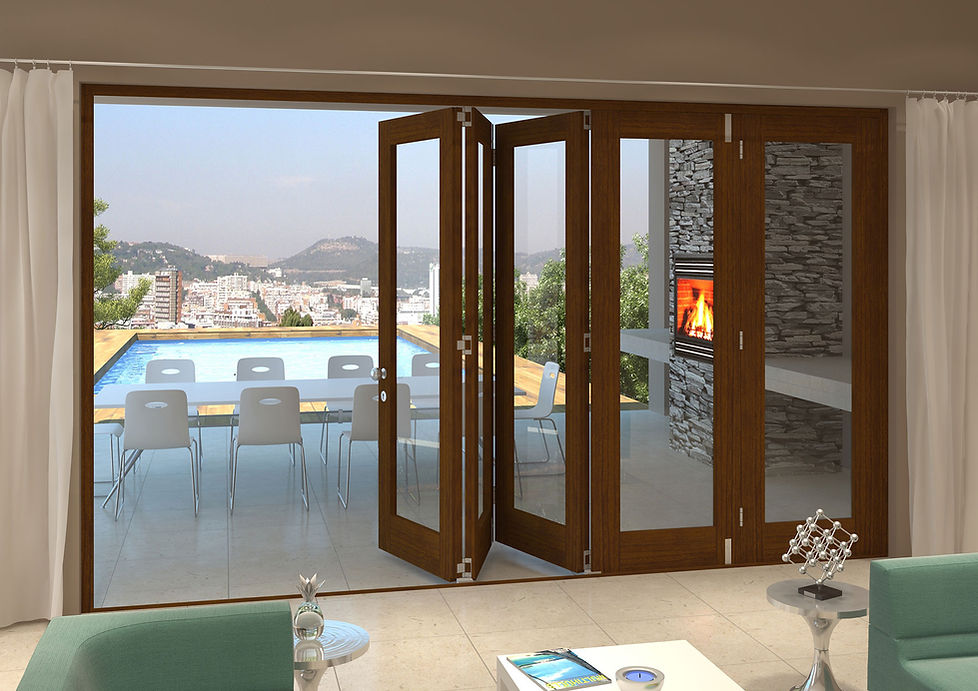

Sliding folding doors

Our Folding Sliding units are supplied as a complete fully assembled unit including all hinges, flush bolts and fitted with a cylinder deadlock.

As timber is a natural product it will shrink and expand with seasonal weather changes. Adjustable hinges are fitted to allow for this movement ensuring the smooth operation of the unit.

Units can be manufactured using any door design subject to size. For installation details click here.

Folding Stacking Options

3 Leaf: (3/0) 3 doors stacking left.

            (0/3) 3 doors stacking right.

4 Leaf: (3/1) 3 doors stacking left 1 hinged right.

            (1/3) 3 doors stacking right 1 hinged left.

5 Leaf: (5/0) 5 doors stacking left.

            (0/5) 5 doors stacking right.

6 Leaf: (3/3) 3 doors stacking left 3 doors stacking right.

            (5/1) 5 doors stacking left 1 hinged right.

            (1/5) 5 doors stacking right 1 hinged left.

External Hardware

Sliding folding unit

1

1

3

3

5

6

6

4

3

2

6

6

x

y

Lock

Internal Hardware

Adjustable hinge

1

Bottom roller hinge

2

Intermediate hinge

3

Top guide hinge

4

Guide channel

x

Bottom rail

y

Hinge handel

5

afri fold hinge

2

Flush bolt

6

Hardware available in pearl gold or natural anodized

Units are available in the following sizes

3 Leaf    W:1925      W:2380      W:2535

              H:2100       H:2100       H:2100

4 Leaf    W:2540      W:3145      W:3350

              H:2100       H:2100       H:2100

5 Leaf    W:3125      W:3885      W:4140

              H:2100       H:2100       H:2100

6 Leaf    W:3740      W:4650      W:4955

              H:2100       H:2100       H:2100

Special sizes available on request
